(Last update Jun 21, 2024)
(Some Chrome browsers may warn ZIP-file downloading. Please also find LZH-file downloading on the Japanese page, if you mind. (Sep 11, 2022))

Attn: VRM Live Viewer users,
VRM Live Viewer (by Fantom-san) is a free software playing back BVHs, VMDs, and/or preset motion for VRM models.

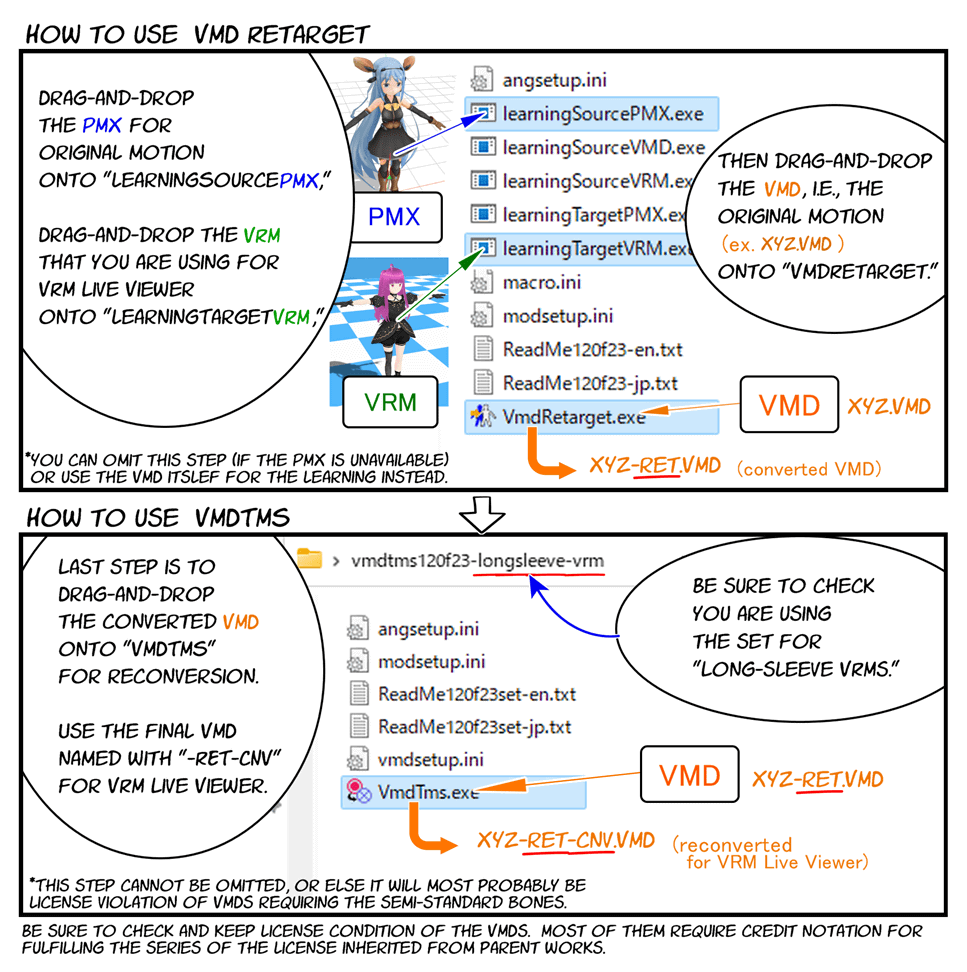

If you are prepareing a VMD file for VRM Live Viewer playback,
- (1) Download ZIP for "VMD Twist-motion Separator set for Unity-based VMD players for long-sleeve models",
- (2) Extract all the files from the ZIP file,
- (3) Drag-and-Drop an original VMD (MMD motion) file to VmdTms.exe,
(then the converted VMD (xxxx-cnv.vmd) will be generated,)
- (4) Drag-and-Drop the converted VMD to VRM Live Viewer.
--
Please be sure to keep the license condition as directed in the ReadMe attached with the VMD.
Most of the VMDs require credit notation to fullfill the series of the license inherited from parent works.
--
If you like to playback more accurate motion compensated the bone angle difference between the original model and your model, also use "VMD Retarget for VRM Live Viewer" to correct the difference beforehand. (In that case, first use VMD Retarget, and then use VmdTms.)
(Mar 26, 2023, updated on Jul 16)


VMD Checker V1.11 for VRM Live Viewer (English edition), vmdchk111-vrmliveviewer-en.zip (1363kB)
for Windows 8, 8.1, 10, and 11.

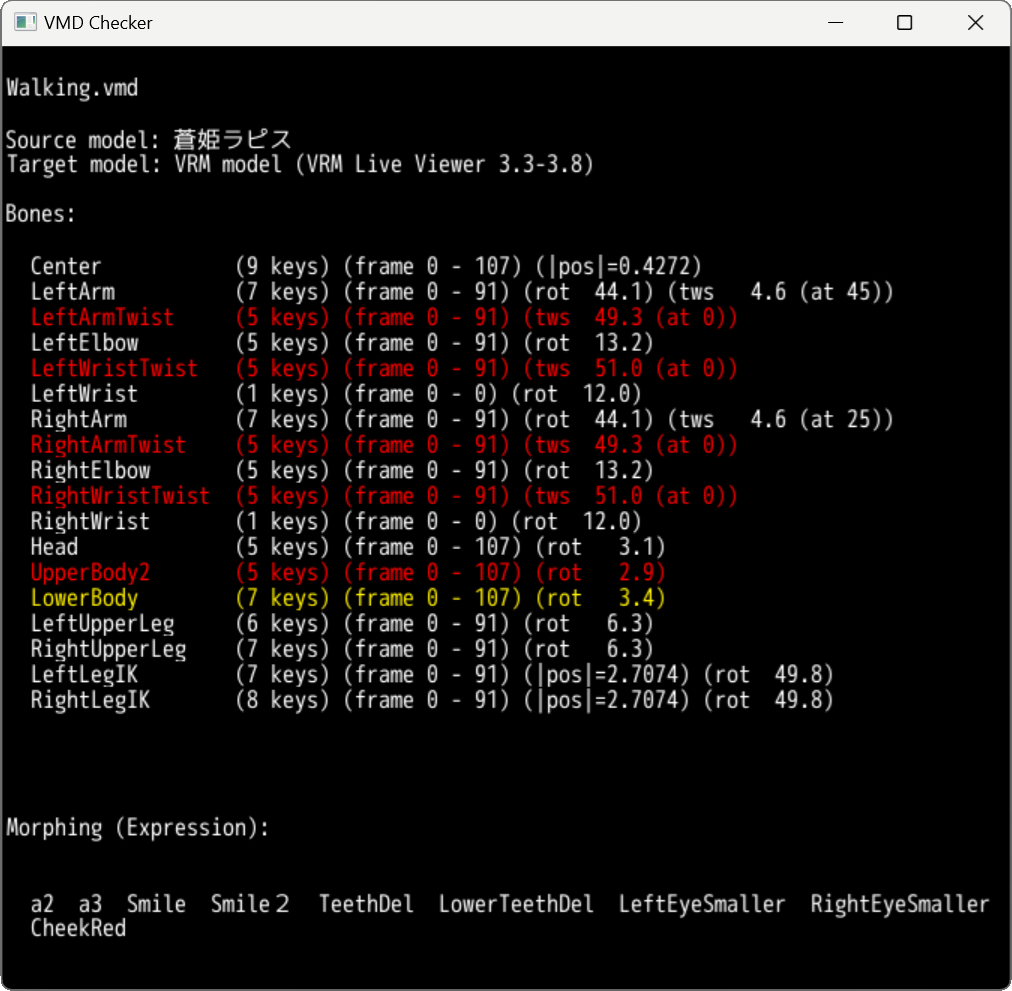

This tool set is for checking if a VMD (MMD motion file) is appropriate for use in VRM Live Viewer 3.9 with VRM models.
Drag and drop a VMD file onto VmdChecker.exe to start checking.
The unsupported bone names in VRM Live Viewer will be displayed in red-to-orange colors.
V1.11 Some unsupported bones registered. Bug fix in "discontent" morph name display. Windows code sign supported.
(Jun 19, 2024)

VMD Retarget V1.21d for VRM Live Viewer, vmdretarget121dset-vrmliveviewer.zip (1214kB)
for Windows 8, 8.1, 10, and 11.
This tool set is for converting a VMD (MMD motion file) for compensating bone angle differences between PMX and VRM models.
Default set up of modsetup.ini is optimized for VRM Live Viewer 3.3-3.9 (by Fantom-san).

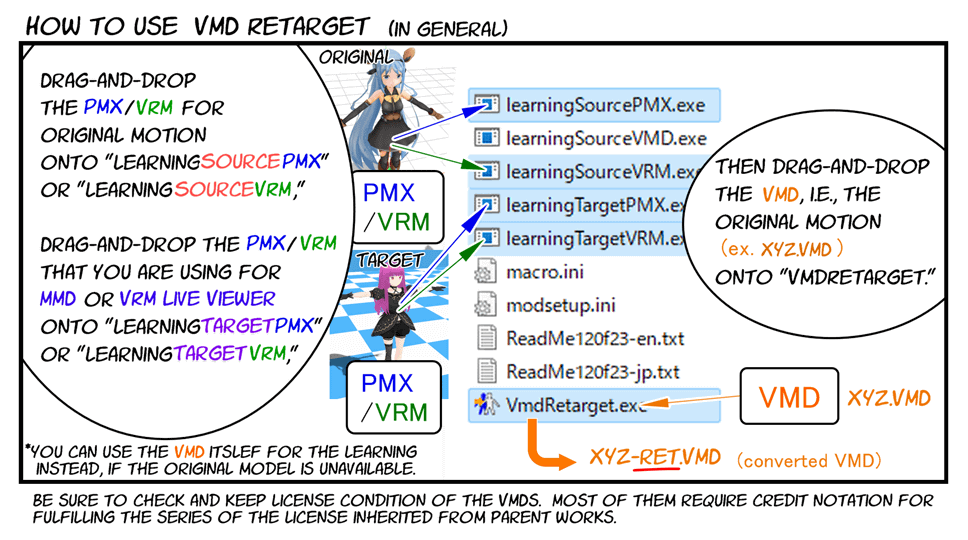

Source models (PMX/VRM) and target models (PMX/VRM) should first be dropped onto learningSoucePMX/VRM and learningTargetPMX/VRM for learinig the bone angles.
Then drop the VMD file onto VmdRetarget.exe.
Converted motion VMD (***-ret.vmd) will be saved automatically in the same folder with the original VMD.
If you are using this tool for converting VMDs for VRM models, also use "VMD Twist-motion Separator V1.21 set for Unity-based VMD players for long-sleeve models" for optimizing twisting-bone motion.
V1.21d Groove-to-Center mixing improved, Lowerbody-to-Center mixing supported partial mixing (-MXPLBTC), bug fix of unintended termination of bone-motion mixing, supported recording of UpperBody3 bones and Windows code sign.
(Jun 21, 2024)

VMD Retarget V1.21d (standard ver.), vmdretarget121d.zip (1213kB)
for Windows 8, 8.1, 10, and 11.
This tool set is for converting a VMD (MMD motion file) for compensating bone angle differences between PMX and VRM models.
This set is the standard set for general conversion of VMDs for MMD playback.
Source models (PMX/VRM) and target models (PMX/VRM) should first be dropped onto learningSoucePMX/VRM and learningTargetPMX/VRM for learinig the bone angles.
Then drop the VMD file onto VmdRetarget.exe.
Converted motion VMD (***-ret.vmd) will be saved automatically in the same folder.
V1.21d Groove-to-Center mixing improved, Lowerbody-to-Center mixing supported partial mixing (-MXPLBTC), bug fix of unintended termination of bone-motion mixing, supported recording of UpperBody3 bones and Windows code sign.
(Jun 21, 2024)

VMD Twist-motion Separator V1.21d set for Unity-based VMD players for long-sleeve models, vmdtms121d-longsleeve-vrm.zip (378kB)
for Windows 8, 8.1, 10, and 11.
This set is for converting a VMD (MMD motion file) for Unity-based VMD players that use UnityVMDPlayer library (by hobosore-san), such as VRM Live Viewer (by Fantom-san).
Just drag-and-drop the VMD file onto VmdTms.exe for starting the conversion.
Default arm angles of 30 degrees are supposed, which are the default values in UnityVMDPlayer library, and are already set up in the vmdsetup.ini. (No pose learning is necessary.)
V1.21d Groove-to-Center mixing improved, Lowerbody-to-Center mixing supported partial mixing (-MXPLBTC), bug fix of unintended termination of bone-motion mixing, supported recording of UpperBody3 bones and Windows code sign.
(Jun 21, 2024)

VMD Twist-motion Separator V1.21d set for Unity-based VMD players for preserving twisting arm motion, vmdtms121d-keeparmtwist-vrm.zip (378kB)
for Windows 8, 8.1, 10, and 11.
This is a substitute for the above "set for Unity-based VMD players for long-sleeve models."
This set is specialized for converting the VMD (MMD motion file) that may include discontinuous arm movements (at some scene changes) or motion rotating hands by 360 degrees.
Use this set instead of the normal set (the set for "Unity-based VMD players for long-sleeve models") if you find a warning message "the converted VMD may have motion rotating hand(s) by 360 degrees" with the normal set.
The VMDTMS in this set trusts the original arm motion in the VMD and converts the arm motion preserving its twisting motion.
This set is also available for VMDs in which the twisting motion of the arms has already been tuned manually or optimized with other tools.
V1.21d Groove-to-Center mixing improved, Lowerbody-to-Center mixing supported partial mixing (-MXPLBTC), bug fix of unintended termination of bone-motion mixing, supported recording of UpperBody3 bones and Windows code sign.
(Jun 21, 2024)

VMD Twist-motion Separator V1.21d vmdtms121d-learnandtune3.zip (1019kB)
for Windows 8, 8.1, 10 and 11.
This is a conventional set without learningposePMX.
V1.21d Groove-to-Center mixing improved, Lowerbody-to-Center mixing supported partial mixing (-MXPLBTC), bug fix of unintended termination of bone-motion mixing, supported recording of UpperBody3 bones and Windows code sign.
(Jun 21, 2024)

(learningposePMX set) VMD Twist-motion Separator V1.21d vmdtms121dset-learnandtune3.zip (1135kB)
for Windows 8, 8.1, 10, and 11.
This set includes learningposePMX V1.11.
V1.21d Groove-to-Center mixing improved, Lowerbody-to-Center mixing supported partial mixing (-MXPLBTC), bug fix of unintended termination of bone-motion mixing, supported recording of UpperBody3 bones and Windows code sign.
(Jun 21, 2024)

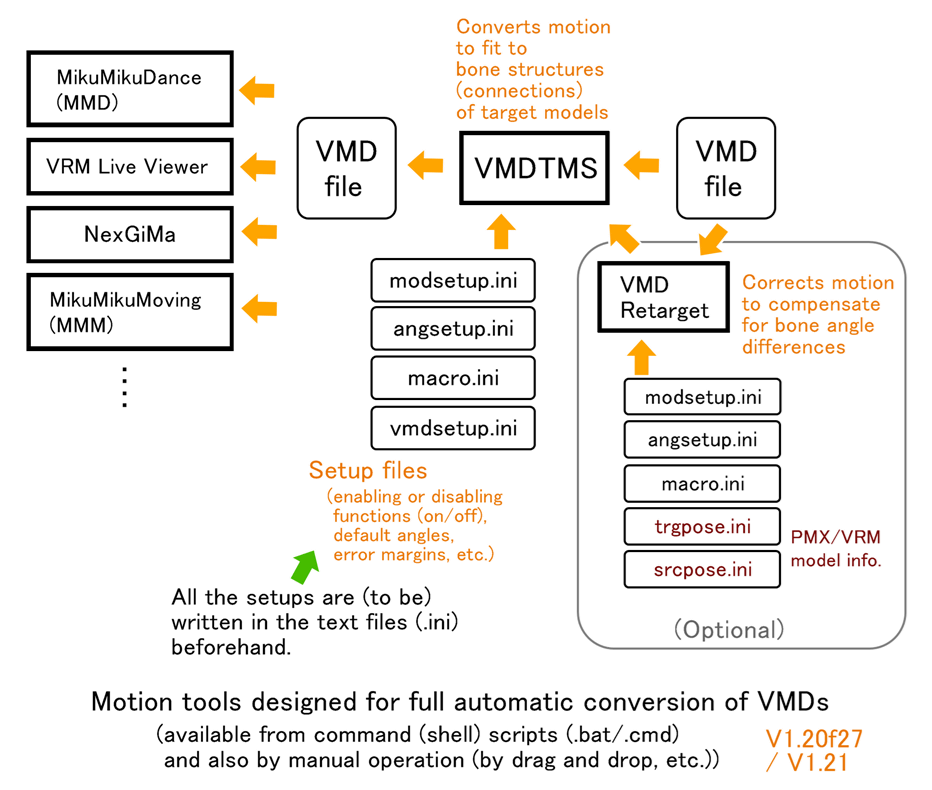

Relation between
VMDTMS and VMD Retarget

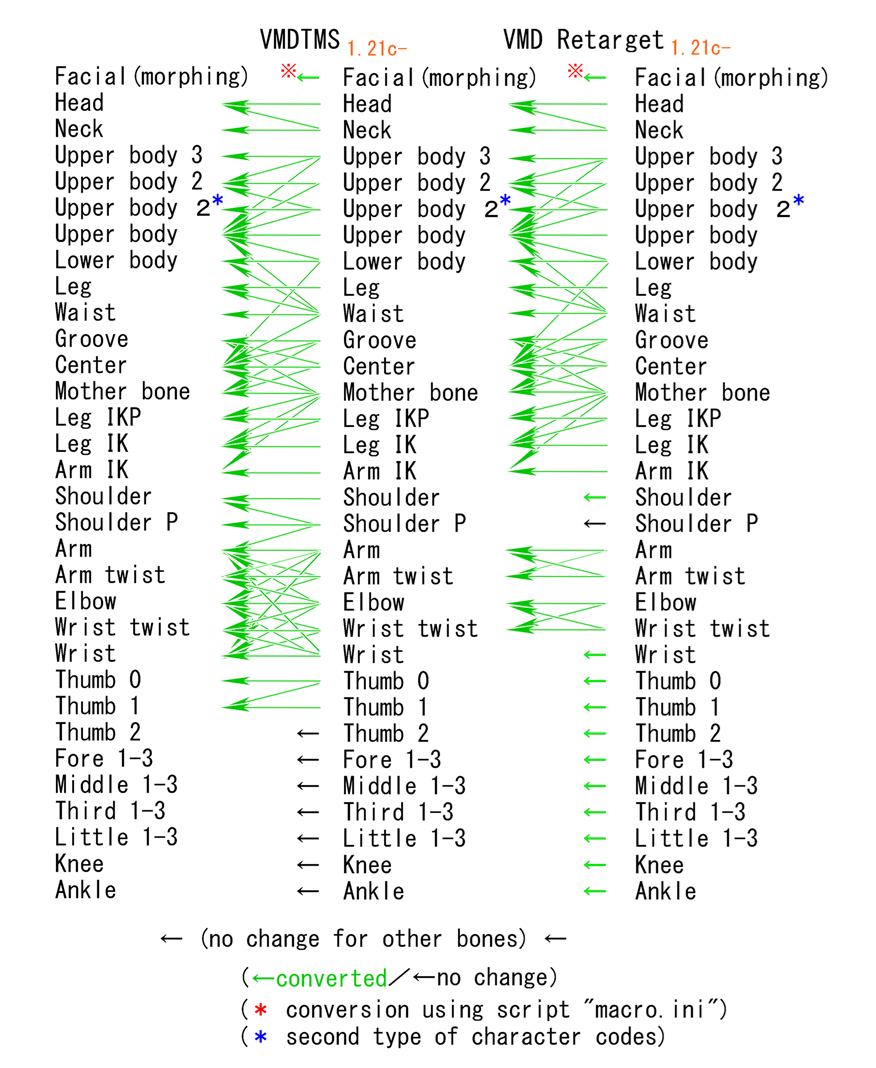

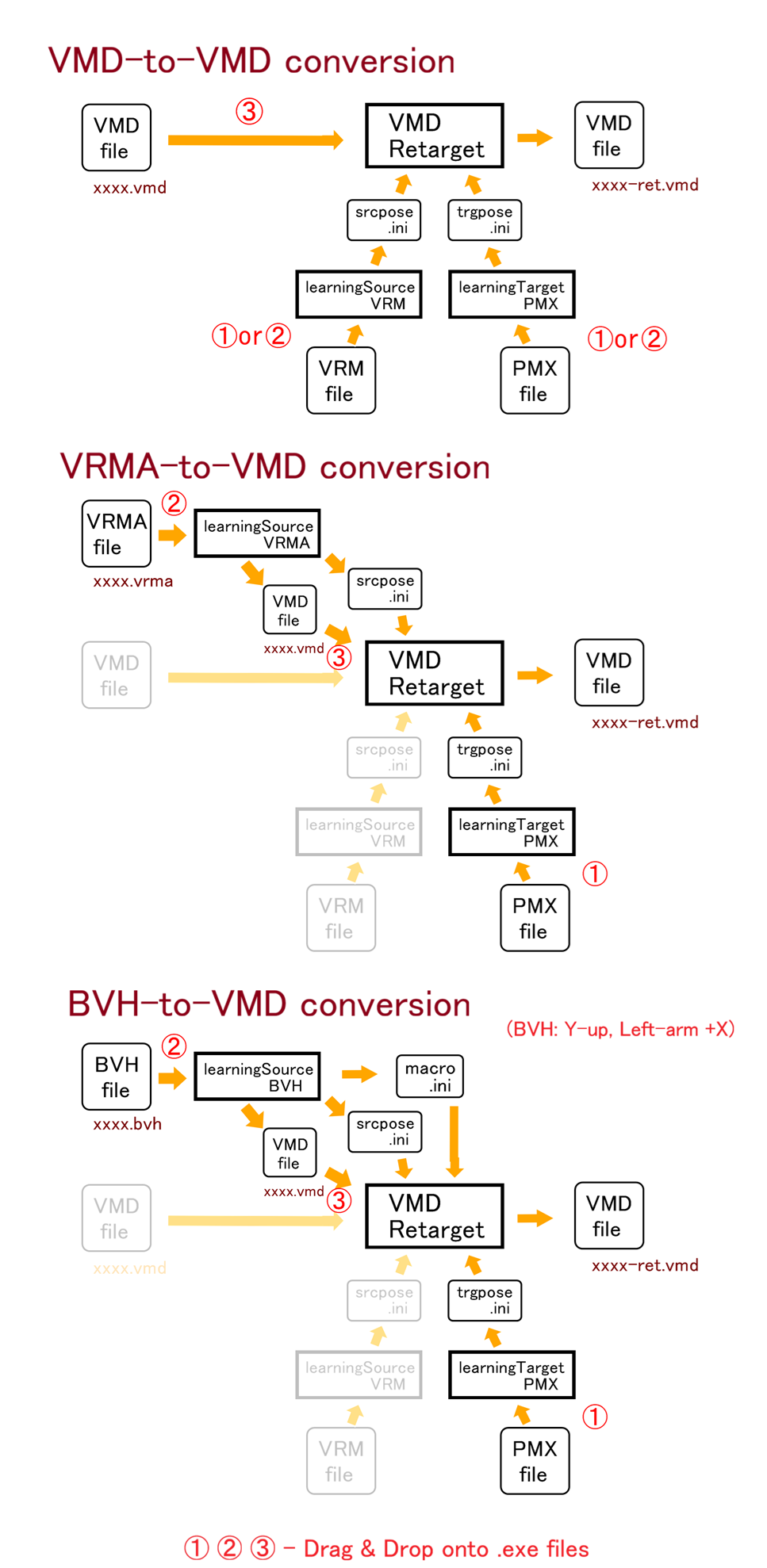

Conversion diagram
(all available conv.)

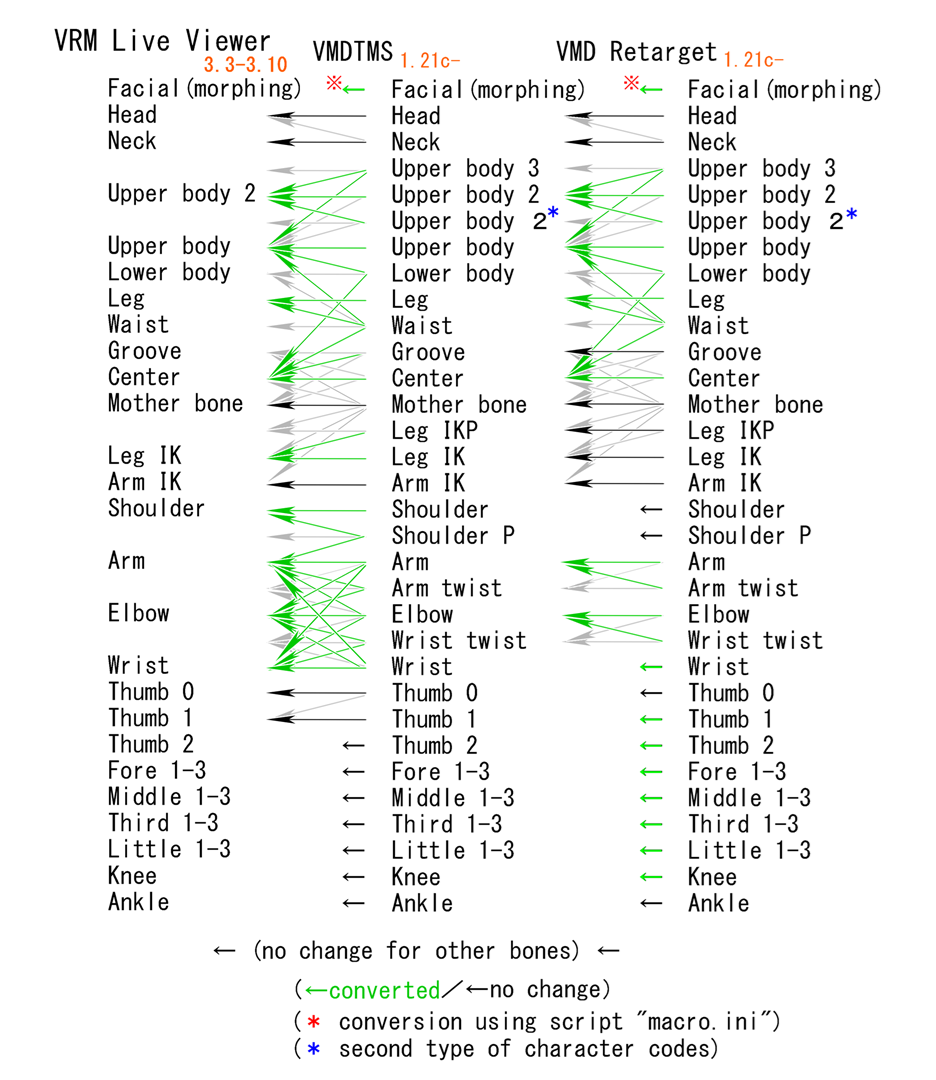

Conversion diagram
(VRM-set setup)

About the license

The license of VMDTMS and VMD retarget has been revised on Jun 21, 2024.
No change was made for personal use.
For company use (corporate use or enterprise use), we have added the terms requiring in-company reporting of the bone names of the model files, the bone names of the motion files, and the names of the tools for processing them, when you use these tool sets with MMD (Miku Miku Dance) motion files, for avoiding incorrect use of the tools and/or the motion files.
Please find the revised license in the Readme files in the sets.


learningposePMX V1.14 learningposepmx114.zip (122kB)
for Windows 8, 8.1, 10, and 11.
Updated version of the optional tool for VMDTMS for learning arm angles directly from PMX files.
V1.14 Windows code sign supported.
(Jun 19, 2024)

PMX Link Corrector V1.01 pmxlinkcorr101.zip (106kB)
for Windows 95-Vista, 7, 8, 10, and 11.
Simple tool for checking and correcting link information recorded in a PMX file.
This tool can fix a PMX file that losts links to texture files, sphere files, and/or toon files.
Just drag-and-drop PMX files onto this tool (PmxLinkCorrector.exe) to start checking or fixing.
V1.01: International language support improved.
(Mar 5, 2023)

VMD Twist-motion Separator V1.21d set for Unity-based VMD players for long-sleeve models (experimental version), vmdtms121dexpt-longsleeve-vrm.zip (378kB)
for Windows 8, 8.1, 10, and 11.
This set is for converting a VMD (MMD motion file) for Unity-based VMD players that use UnityVMDPlayer library (by hobosore-san), such as VRM Live Viewer (by Fantom-san).
This is an experimental version that also corrects mismatch of up-down motion of body center between MMD and Unity-based VMD Player. (This set is optimized for VRM Live Viewer 3.3-3.9.) If you like using stable version, please use standard versions for long-sleeve VRMs.
Just drag-and-drop the VMD file onto VmdTms.exe for starting the conversion.
Default arm angles of 30 degrees are supposed, which are the default values in UnityVMDPlayer library, and are already set up in the vmdsetup.ini. (No pose learning is necessary.)
V1.21d Groove-to-Center mixing improved, Lowerbody-to-Center mixing supported partial mixing (-MXPLBTC), bug fix of unintended termination of bone-motion mixing, supported recording of UpperBody3 bones and Windows code sign.
(Jun 21, 2024)

VMD Twist-motion Separator V1.21d set for Mother-bone motion mixing, vmdtms121d-motherbonemix.zip (377kB)
for Windows 8, 8.1, 10, and 11.
This set is for converting a VMD (MMD motion file) for mixing Mother-bone motion and Center-bone motion.
Mother-bone motion in converted VMD will be cleared and vacant, which allows users additional translation and rotation without editing PMX models.
Just drag-and-drop the VMD file onto VmdTms.exe for starting the conversion.
The converted VMD will be named as "***-mix.vmd".
No pose learning is necessary.
(The attached readme is the same with that in standard VMDTMS set.)
V1.21d Groove-to-Center mixing improved, Lowerbody-to-Center mixing supported partial mixing (-MXPLBTC), bug fix of unintended termination of bone-motion mixing, supported recording of UpperBody3 bones and Windows code sign.
(Jun 21, 2024)

VRM Rewriter V1.20 vrmrewrite120.zip (156kB)
for Windows 8, 8.1, 10, and 11.
Simple tool for rewriting VRMs.
Just drag-and-drop a VRM file onto this tool (VrmRewriter.exe) to start conversion.
This tool rewrites radii of the leg-fixed colliders according to the options assigned in modsetup.ini.
ex.)
-LCR0=(radii of the closest colliders to the hips)
-LCR1=(radii of the 2nd closest colliders)
-LCR2=(radii of the 3rd closest colliders)
-LCR9=(radii of the colliders after them)
This tool also deletes unused data and reformats JSON parts of VRMs.
The converted VRM will be named as "***-rew.vmd".
V1.20: Supported leg-fixed collider radius rewriting. Windows code sign supported.
(Jun 19, 2023)

Skymaker Executable Files Update Set (V2.64a16) sky264exeupdate16.zip (7333kB)
for Windows 95-Vista, 7, 8, 8.1, 10, and 11. Updated for supporting Windows-10 (1903) output transparent AVI file read-in (<2GB) with updated scripts for file viewer samples.
(Jul 17, 2020)

Skymaker Executable Files Update Set (V2.64a10)(stable) sky264exeupdate10e.zip (2381kB)
for Windows 95-Vista, 7, 8, 8.1, 10, and 11. Revised for [T]-key (left-top trimming) and [H]-key (right-bottom trimming) image extraction in single image viewer sample.
(Jun 17, 2015)

Transparent BMP format (BITMAPV4): page 1, page 2 (in Japanese).
(updated on Oct 23, 2023)



Previous release
VMDTMS
VMD Retarget
VMD Checker
learningposePMX
PMX Link Corrector
VRM Rewriter



Copyright(c) F. Issiki/Finekit, 2015, 2024
